BY-1820B IP IP65 18X20W Splicing Pixel LED Wall Washer Bar

  • IP65 18X20W Splicing Pixel LED Wall Washer Bar
  • INQUIRY

Technical Specifications

Input voltage: AC100-240V, 50/60Hz

Rated power: 360W

Light source: 18*20W high-power LEDs (4-in-1 RGBW)

Channels: 5/8/15/32/72 channels

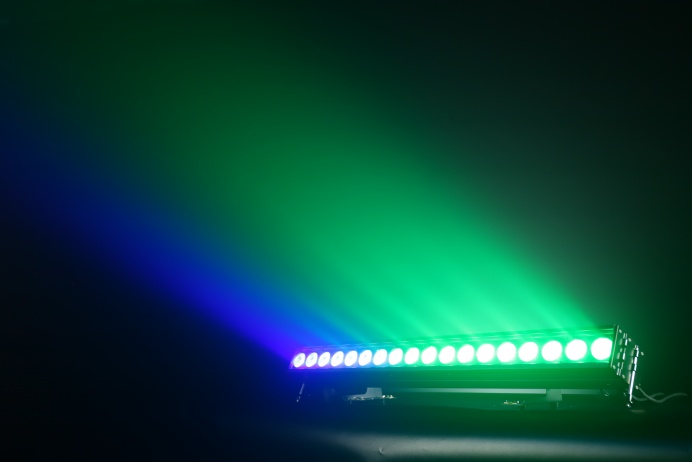

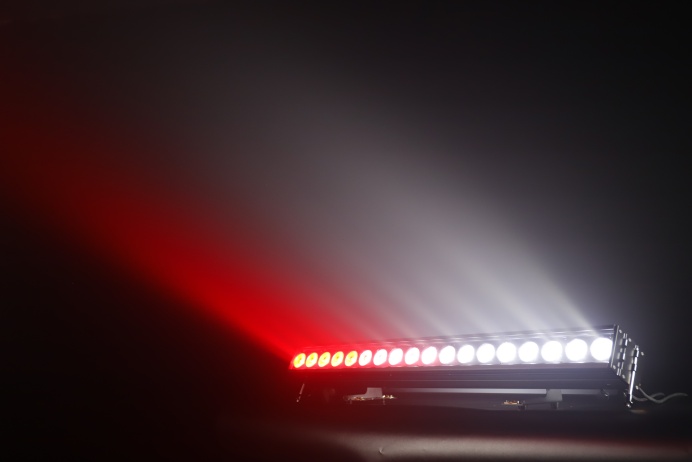

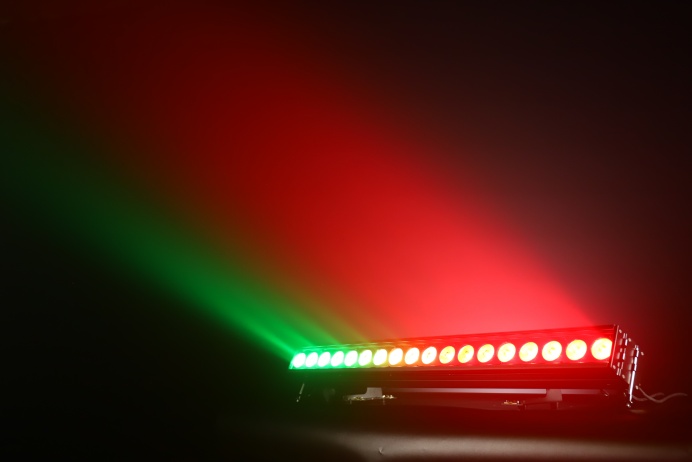

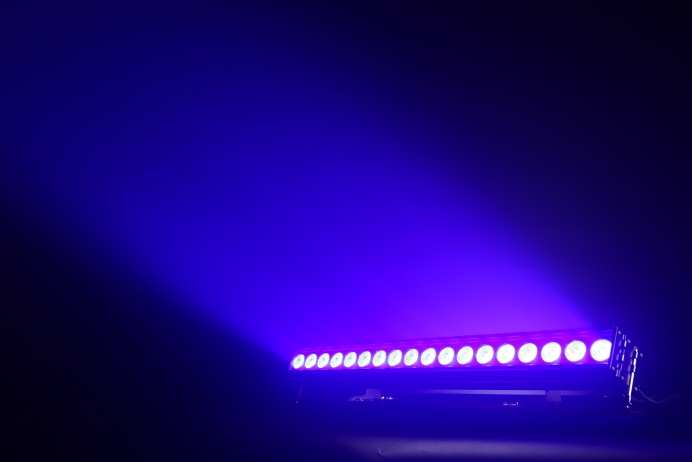

Color mixing: RGBW colorful infinite changes, high color purity, special optical design makes the light effect more uniform

Dimming: 0-100% linear dimming

Strobe: 0-30Hz

Control: International standard DMX512, Master/Slave mode, Auto mode, RDM

Display: HD OLED display, touch button

Cooling: Intelligent temperature control, active, no fan, silent operation, no noise

Power connection: Seetronic IP65 Power Connectors IN+OUT

Signal connection: Seetronic IP65 DMX Connectors IN+OUT

Lamp life: 60,000-100,000 hours

Waterproof grade: IP65

Net weight: 7kg

Lens: 25° (15°/45°/60° optional)


Casing: Aluminum alloy shell, waterproof and sealed design, waterproof grade reaches IP65. Suitable for various indoor and outdoor performances, environmental art lighting, outdoor lighting and other dyeing and paving effects.

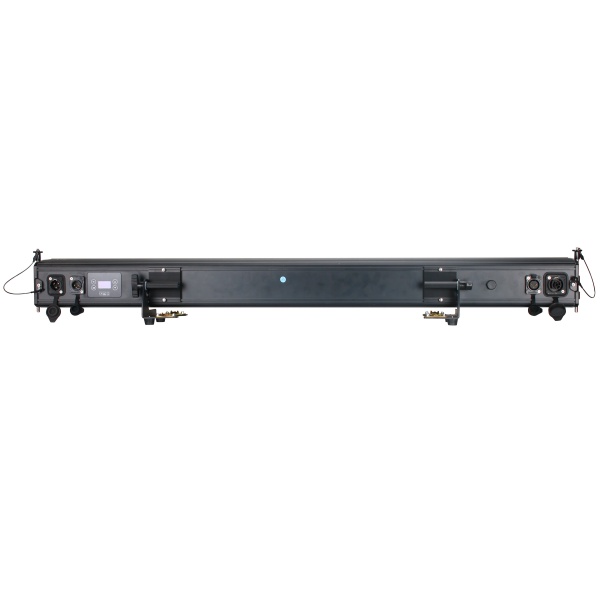

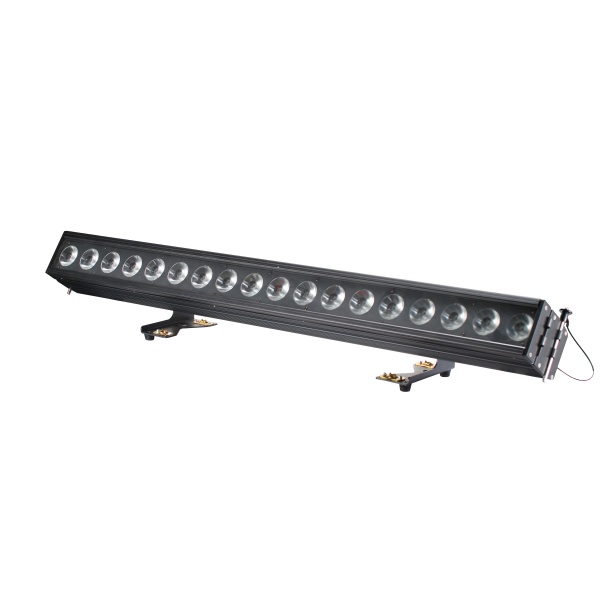

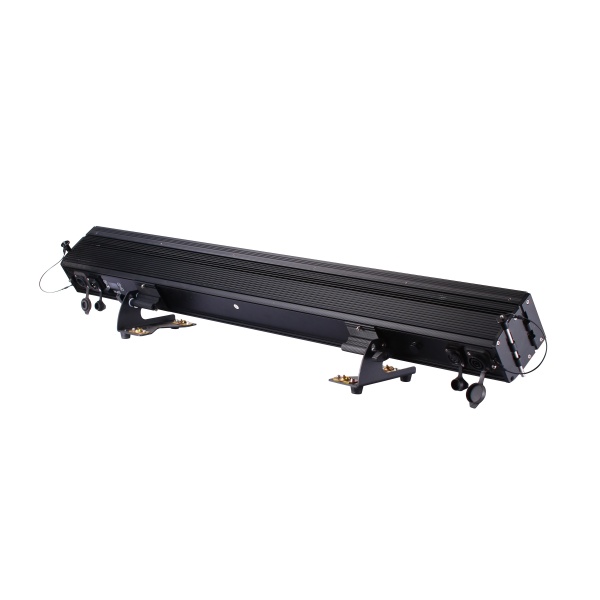

Double bracket design, convenient for horizontal hanging in the air and horizontal placement on the ground.

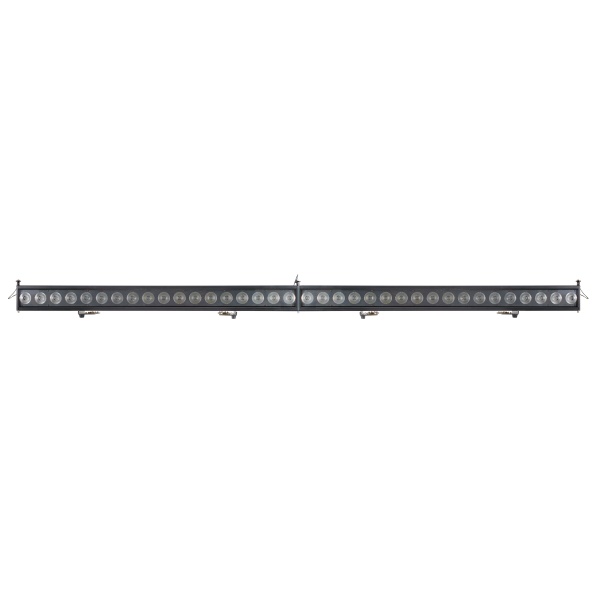

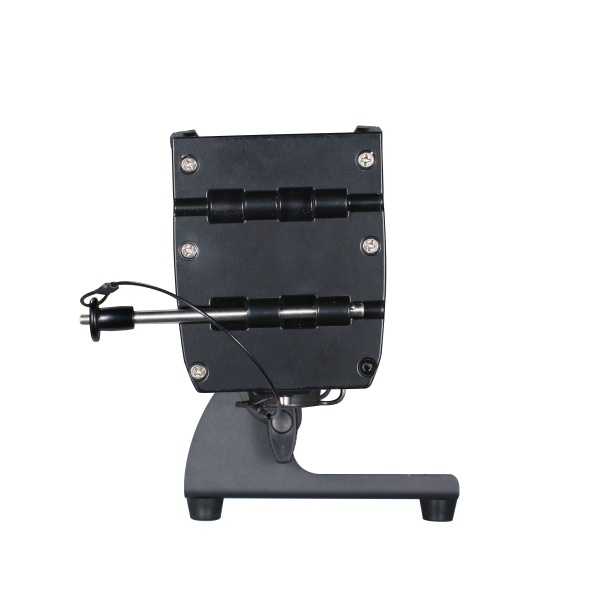

Unique end cap splicing design, equidistant splicing, easy installation, perfect docking, ensuring the same spacing of each lens.

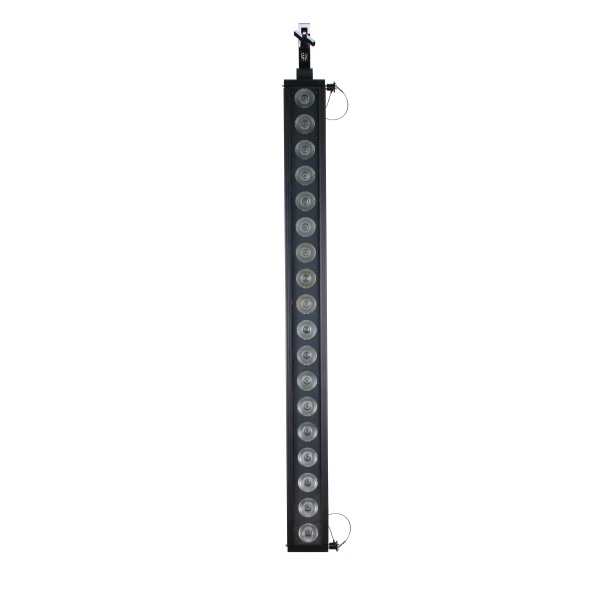

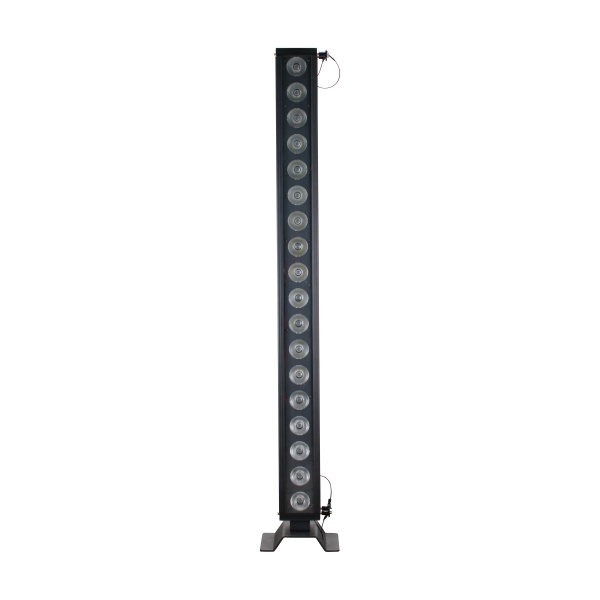

Multiple installation methods: horizontal hanging, vertical hanging (optional end caps are required), horizontal placement on the ground and vertical placement on the ground (optional base is required)


This product is suitable for various indoor and outdoor performances, environmental art lighting, outdoor lighting and other dyeing and paving effects
