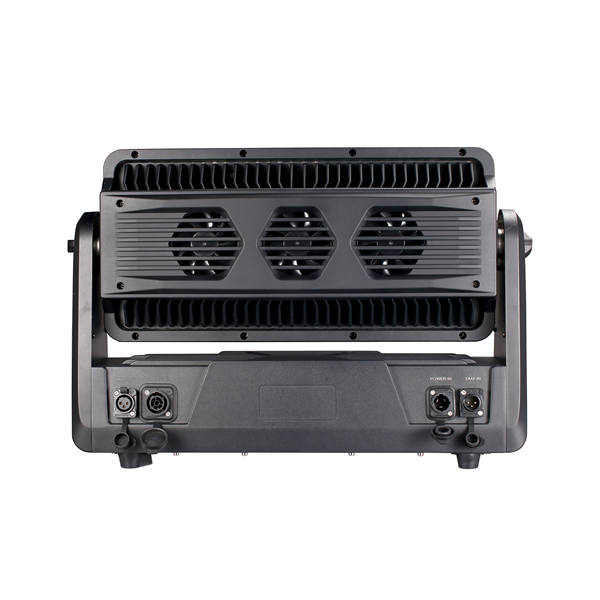

BY-3230 IP65 32x30W RGBW 4in1 outdoor waterproof LED Flood Light

SPECIFICATIONS

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Light Source: 32 LEDs (quad-color RGBW) 30 W

Power: 1000W

50,000 hours life expectancy

Installed Optics: 10°（25°/45°/60°）

Selectable PWM: 1,200 Hz- 24,000 Hz

Manual Tilt Ranges: 0° to 145°

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Standalone Color Mixing: Yes

Display: Colorful LCD display

Dim Modes: 4

Built-in Automated Programs: Yes

Dimensions: 556 x 134 x 377 mm

Weight: 15 kg

Exterior Color: Black

Housing Material: Aluminum die-cast, High-strength engineering nylon plastic, anti-UV treatment, high temperature resistance, anti-aging

Cooling: Silent waterproof fans, fan speed intelligent control

IP Rating: IP65, outdoor/wet, with pressure equalizing M12 exhaust valve

Temperature (Ambient): -20 °C to 45 °C

Power Connection: Local plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: Seetronic 3-pin or 5-pin IP65 XLR

Control Protocol: DMX, RDM

DMX Channels: STAG/4/6/8/32/34/40/SHV

LED Panel: 8 individually controllable segments

Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @   230 V

1.5m Seetronic Powerkon IP65 power cord

1.5m Seetronic DMX Cable

Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

◎ Barndoor

◎ Magnet Filter

◎ Clamps
