LED Moving Head Lights

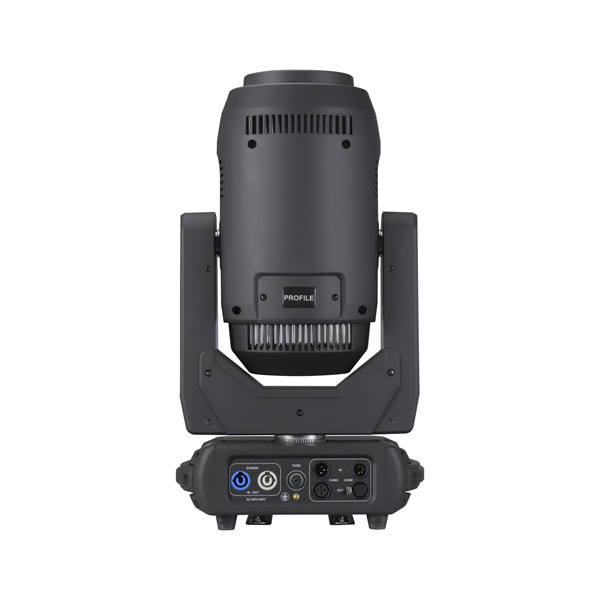

BY-9350BSWF 350W Beam Spot Wash Profile 4in1 LED Moving Head Light
- 350W Beam Spot Wash Profile 4in1 LED Moving Head Light
TECHNICAL parAMETER
Electrical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 450W @ 220V
Power factor: PF>0.9
Light source specification:
Light source:350W high brightness LED
Color temperature:7500K-8000K
Life time:50000 hours
colour:
1 color wheel: 7 colors + white
Variable speed bidirectional with rainbow effect
Step/ Linear conversion color optional
Rotation gobo wheel:
1 rotating gobo wheel: 7 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the
pattern plate
Profile wheel:
Any regular graphics can be cut
Prism:
5-facet prism, can be rotated in both directions
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Strobe/ Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
22Iris:
Independent iris, the size can be adjustable
Atomization:
Independent atomized lens, softer light
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540o vertical: 270o
Beam Angle:
DMX linear amplification, the beam angle can be freely switched from 8 to 35 degrees
Control mode:
DMX512 control, 3-pin + 5-pin
26CH channel mode
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and
ensure LED lifetime
Modular structure for easy maintenance
Housing material/ protection level:
High temperature/ UV light resistant engineering plastic
Protection grade: IP20
weight:
Net weight: 18kg
Gross weight: 20kg
packing size: (mm)
390(L)*31(W)*710(H)
23Working temperature:
Maximum ambient temperature 50°C
