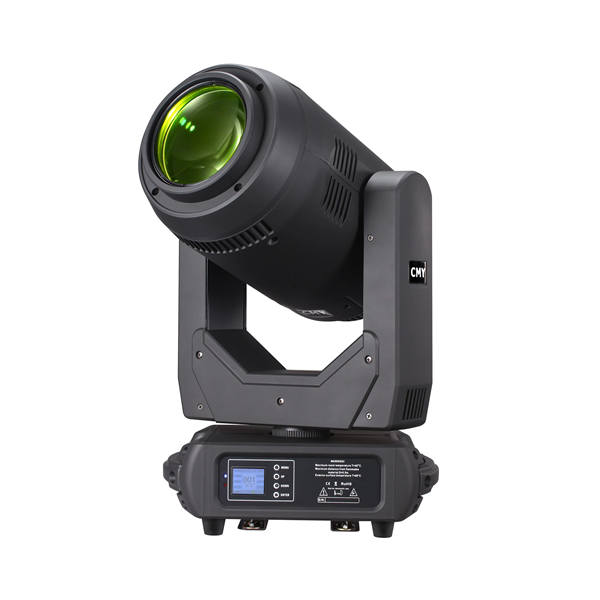

BY-9350CMY 350W Beam Spot Wash CMY LED Moving Head Light

TECHNICAL parAMETER

Electrical parameters:

Voltage: 100V~240V AC, 50/60Hz

Power: 450W @ 220V

Power factor: PF>0.9

Light source specification:

Light source:350W high brightness LED

Color temperature:7500K-8000K

Life time:50000 hours

colour:

1 color wheel: 7 colors + white

Variable speed bidirectional with rainbow effect

Step/Linear conversion color optional

With C M Y function, color can be adjusted;

Can be mixed to make the color richer.

Rotation gobo wheel:

1 rotating gobo wheel: 7 gobos + white

The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate

Prism:

5-facet prism, can be rotated in both directions

Focus:

DMX linear focus adjustment, super smooth focus adjustment.

Strobe/Dimming:

Electronic strobe, 0.3-25 times/second,linear dimming

Atomization:

Independent atomized lens, softer light

Rotation angle:

Use three-phase stepping motor, fast, quiet, with automatic return function.

Horizontal:540°

vertical: 270°

Beam Angle:

8-35°

DMX linear amplification, the beam angle can be freely switched from 8 to 35 degrees

Control mode:

DMX512 signal, 3-pin + 5-pin

20CH channel mode

Other functions:

Horizontal and vertical speed adjustable

Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime

Modular structure for easy maintenance

Housing material/protection level:

High temperature/UV light resistant engineering plastic

Protection grade: IP20

weight:

Net weight: 16kg

Gross weight: 19kg

packing size: (mm)

390(L)*31(W)*710(H)

Working temperature:

Maximum ambient temperature 50°C
