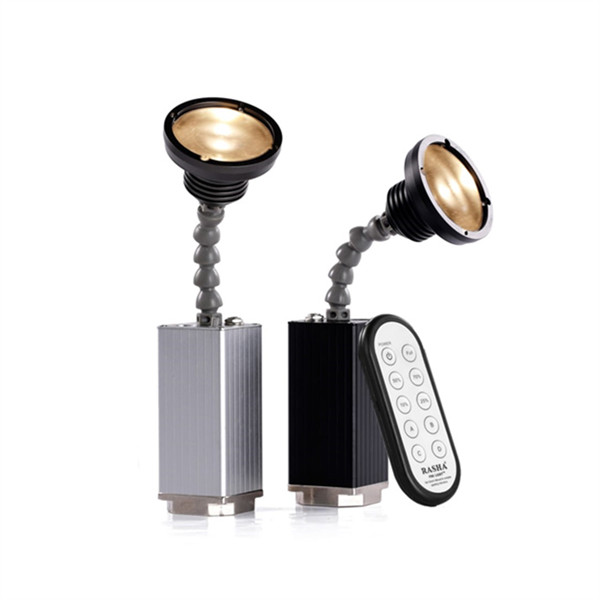

BY-801A LED Battery Pinspot

BRIEF

Pin Spot Zoom is a new battery-powered & wireless IR controllable pin spotlight.
Pin spot Zoom is a compact, refined version of traditional pin spotting with new user-friendly zoom.
It features 10 hours battery backup on a single charge, IR wireless, and manual zoom, Easily mountable to any metal surface with its powerful magnetic base.
battery-powered Bullet Pin Spot creates perfectly-parallel, laser-like beams with incredible soft edge output projection of warm white.
Bullet Pin spot with zoom has double the brightness than our nearest competitor.
This battery-powered wireless pin spotlight is designed ideally for installation at events, shows, and clubs.

SPECIFICATION
PHYSICAL
Weight: 0.4 kg (0.88 lbs.)
Dimensions
Base:45 x45 x 100 mm(1.77x 1.77x 3.93 in.)
Neck pipe:80x15x15mm(3.14x 0.59x 0.59 in.)
Head:63x63x45mm(2.48x2.48x1.77 in.)
DYNAMIC EFFECTS
Color mixing: Warm White
Electronic dimming: 10%/ 25%/50%/70%/100%
Electronic shutter effect: Instant open and blackout
Zoom:Manual Zoom
CONTROL AND PROGRAMMING
Control options:
IR Wireless remote control
ID Code selector: A,B,C,D,0,25%,50%,75%,100% ID code selector for each fixture Superior
Remote type:IR Technology
Controllable distance: 500 Feet
IR Remote channels: 4 Channels
OPTICS AND PHOTOMETRIC DATA
Light source: 1x 10W Warm white/cool white LED Chips
LEDs Beam angle: 3°-15°
LED lifetime: 50,000 hours (to >70% luminous output)* *Manufacturer ́s figure obtained under manufacturer ́s test conditions
CONSTRUCTION
Materials:Body/Head(anodized Aluminum) Neck(Bendable Plastic)
Color::= Black/White/Silver
Basement Magnet: Heavy duty magnet, Anodized
Protection rating: IP20
CONNECTIONS
Charger power in:Type N Barrel charger
Channel selector: A,B,C,D manual channel selector
IR Signal Receiver: Superior IR
ELECTRICAL
AC power:100-240 V, 50/60 Hz
Power consumption: 10W
battery: High-powered Lithium battery
Battery backup time: 9-10 Hours
Battery charging time: 6 Hours
