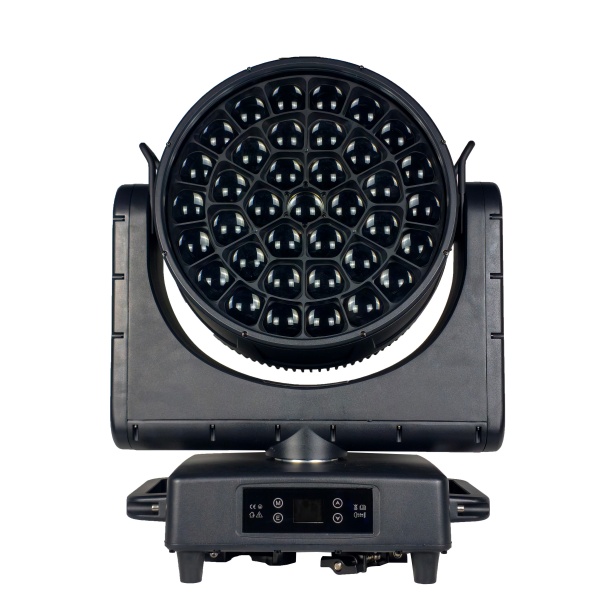

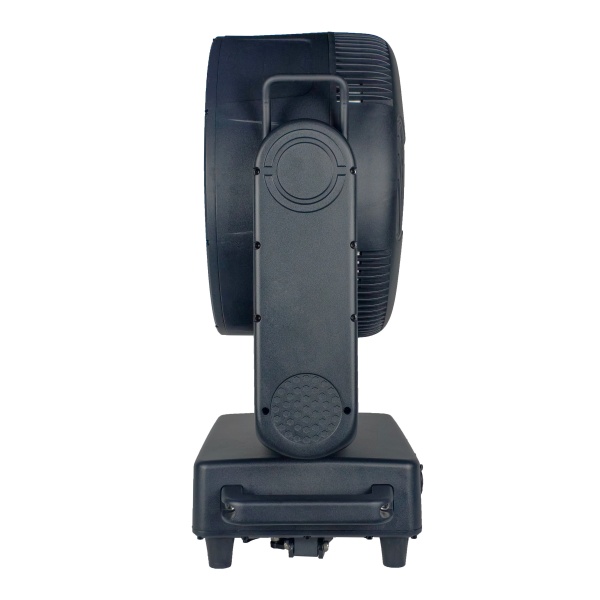

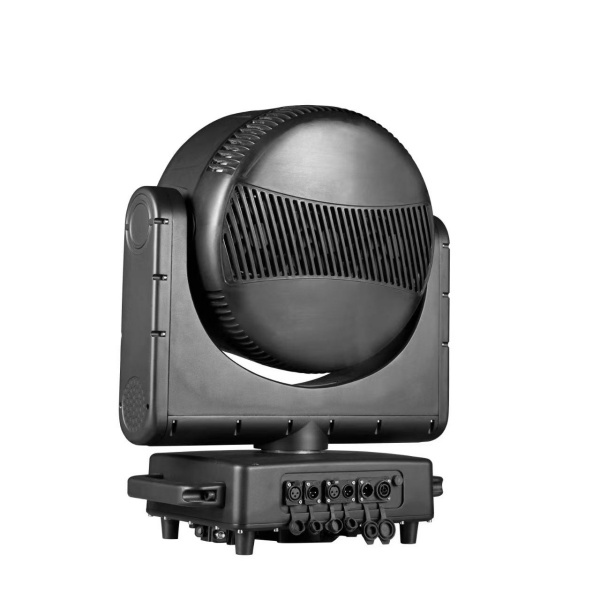

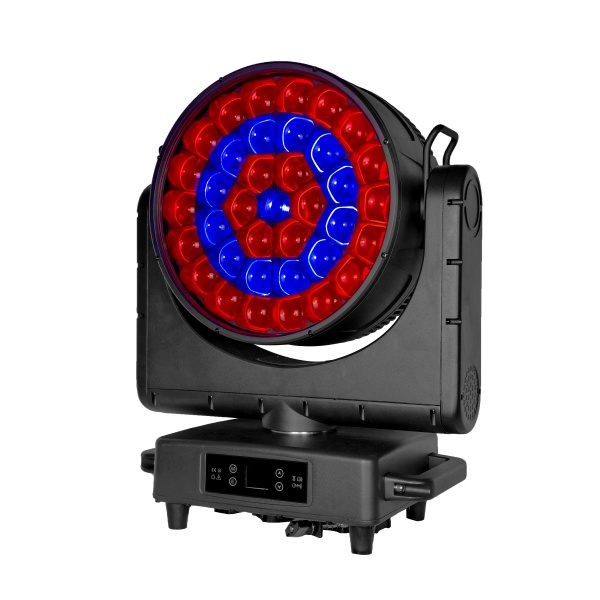

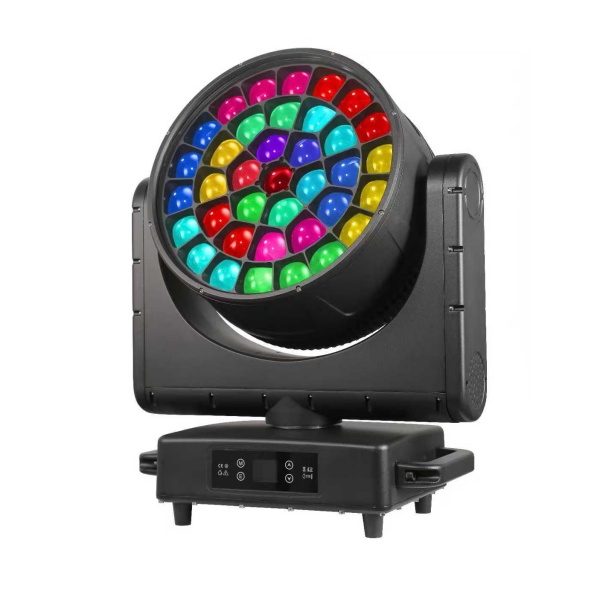

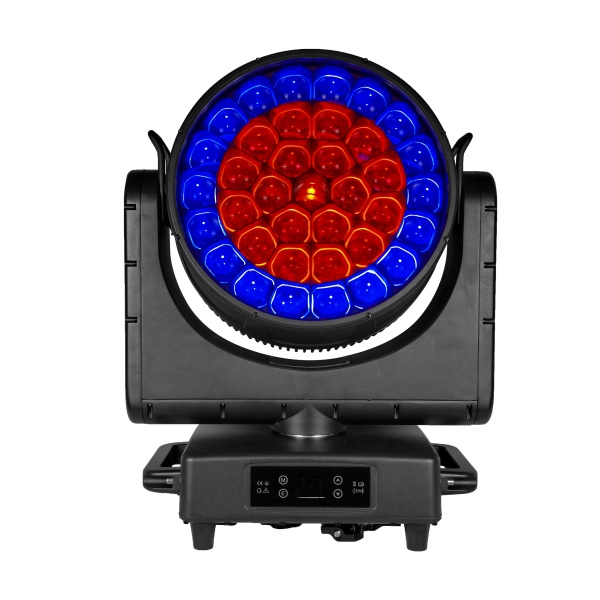

BY-3740IP IP65 37X40W RGBW 4in1 LED Moving Head Light

TECHNICAL parAMETERS

Voltage: AC100V～240V 50-60HZ
Rated Power: 1450W
LED Source: 37x40W high power RGBW 4 in 1 LEDs
Zoom: 7°-50°
Strobe: 0-25Hz
Control Mode: DMX512,Sound-actived,Master/slave
DMX Channels:21/22/35/36/111/148 sixchannel mode
Dimmer: 0-100% linear dimmer with 4 kinds of dimmer curve.
Pan: 540°+16bit fine
Tilt: 250°+16bit fine
Display: LCD display with touch buttons.
Temperature control: intelligent temperature control, which can
automatically adjust the speed and overheating protection of the
heat fan.
IP: IP65
Fixture dimension: 530*279*663mm
N.W: 32.2 Kg
R 31000lux@2m 18600lux@4m 8500lux@6m
G 56000lux@2m 35000lux@4m 16300lux@6m
B 90000lux@2m 63500lux@4m 30000lux@6m
W 83000lux@2m 59000lux@4m 27600lux@6m
RGBW 158000lux@2m 118500lux@4m 72000lux@6m
G.W: 37.8Kg
Package dimension: 79.5x65x42cm(1pc/ctn)
Special Points.
1. Each LED can be controlled individually. With unique honeycomb
designed lens
2. The front lens can rotate without limitation in forward and reverse
direction to create amazing effects
3. Can be used as beam, wash or effect light use (Kaleido effects)
