Moving Head Lights

  • BY-9440B IP65 Outdoor 440W Beam Moving Head Light
  • BY-9440B IP65 Outdoor 440W Beam Moving Head Light
  • BY-9440B IP65 Outdoor 440W Beam Moving Head Light
  • BY-9440B IP65 Outdoor 440W Beam Moving Head Light
  • BY-9440B IP65 Outdoor 440W Beam Moving Head Light
BY-9440B IP65 Outdoor 440W Beam Moving Head Light BY-9440B IP65 Outdoor 440W Beam Moving Head Light BY-9440B IP65 Outdoor 440W Beam Moving Head Light BY-9440B IP65 Outdoor 440W Beam Moving Head Light BY-9440B IP65 Outdoor 440W Beam Moving Head Light

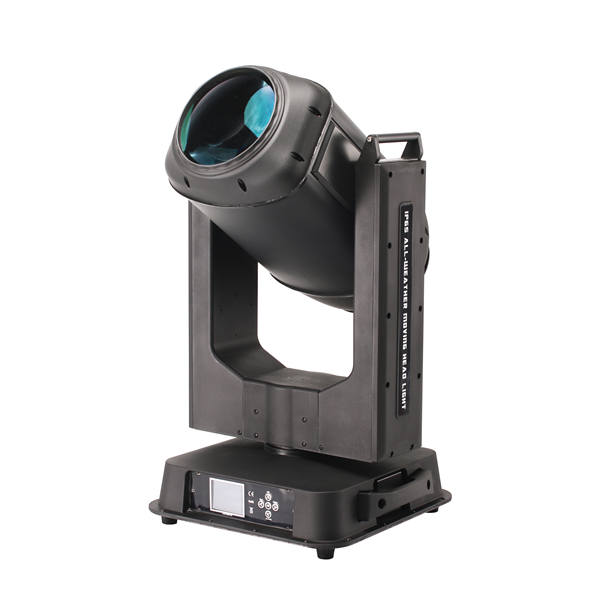

BY-9440B IP65 Outdoor 440W Beam Moving Head Light

  • IP65 Outdoor 440W Beam Moving Head Light
  • INQUIRY

LIGHT SOURCE

● Light Source: Original Philips 440W/470W lamp(7600K)

● Ballast: PHILIPS

● Average Life Span: ≥1500hours


POWER

● Input Voltage: AC90~240V, 50/60Hz

● Power Consumption: 600W / 800W


OPTICAL SYSTEM

● Luminous Flux: 660000lumen@10m

● Beam Angle: 0~1.2°

● CRI: 85±5

● PFC: ≥0.95

● ZOOM: Linear zoom (3in1 function)

● Focus: Motorized linear focus

● 1 Prism Wheel: 1pc 8-facet prism, bidirectionally rotating at variable speed (3-facet or 16-facet prism is optional)

● Frost: 1pc frost filter, can achieve soft light effect

● Dimmer: 0~100% mechanical dimming, smooth without flicker

● Shutter/Strobe: Independently strobe with double motors, 0.5~20 F.P.S, speed adjustable

● Lens: Use imported multilayer coating lens combination, the diameter of beam aperture is up to 200mm

● Projection Distance: Over 3000m in similar parallel light


MOVEMENT

● Pan and Tilt: Use high precision 3-phase motors for pan and tilt, accurate location, smoothly moving, automatic correction location

● Pan: 540°rotation, 8/16Bit adjustment

● Tilt: 270°rotation, 8/16Bit adjustment


COLOR SYSTEM

● 1 Color Wheel: Use Taiwan high temperature color filters, 11pcs colors+open, half color and rainbow effect

● 1 Rainbow Wheel: Use Taiwan filters, can project 1 or 8 beams of rainbow effect


GOBOS

● 1 Fixed Gobo Wheel: 14pcs fixed metal gobos+open, bidirectionally shaking & flowing at variable speed


CONTROL

● Control Mode: DMX512, RDM function(remotely set the address code via a large DMX512 controller), Auto Run, Sound Control, Master\Slave and Manual

● DMX Channels: 14/18CH

● Lamp Control: Control the lamp on/off via controller


PHYSICAL

● IP Grade: IP65

● DMX Connector: 3-pin waterproof signal in and out XLR

● Display: 2.8 inch colorful LCD screen, 180° inversion

● Power Cable: Waterproof power cable


MATERIAL

● Fixture Material: High hardness heat dissipation aluminum profile(die-casting aluminium), flame-retardant anti-aging high temperature engineering PVC, use outdoor imported fine sand spraying technology, anti-uv treatment, anti-aging, high temperature, long service life


COOLING SYSTEM

● Cooling System: Use Japan fans, the chip controls the fan speed, the original heat dissipation structure, cooperate with the radiator shell, guarantee the long time outdoor use


FEATURE

● Feature: It can be programmed independently via LCD display, master and slave lights are running synchronously without controller operation


WEIGHT & DIMENSION

● Fixture N.W.: 32.5Kg

● Carton G.W.: 35.5Kg

● Flight Case G.W.: 55Kg

● Fixture Dimension: L430*W400*H780(mm)

● Carton Dimension: L570*W500*H930(mm)

● Flight Case Dimension: L570*W480*H960(mm)
