BY-LA34 5W RGB animation laser light

5W RGB animation laser light
INQUIRY

5 w full-color is the most popular in the market, the highest cost performance, suitable for 500-700 square meter space, should be widely in bar, wedding, commercial speech and other venues.

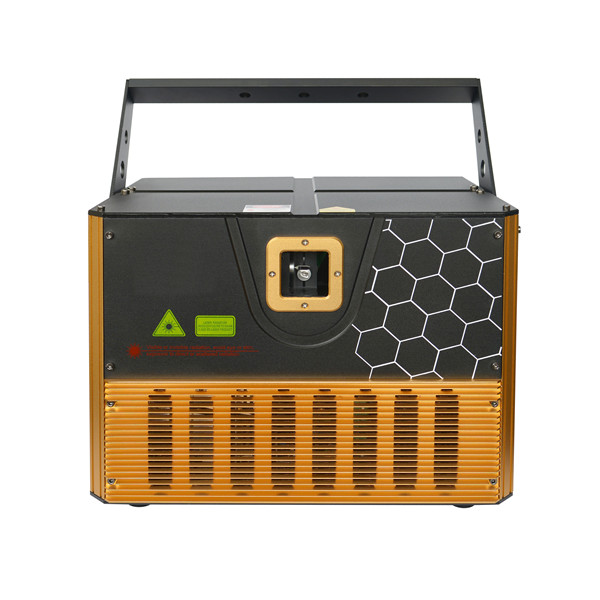

Compared with the traditional 5W RGB full-color laser, appearance choose the current popular tyrants king .New body is smaller, easy to transport and install. more reasonable structure, good heat dissipation, dust-proof performance is better.

New LCD panel program. Powerful functions, the interface is complete. With SD card , containing rich programs,can be directly use DMX control directly create the same effect as the laser software for your computer.The built-in various music modes, so newcomers are no pressure, Also supports Lightful RJ45 cable transmission signal, So you no longer worries arrangement of wires.

Specifications:

◎Rated voltage and Power：AC100~240V 50/60Hz; <900W

◎Scanner：40K high speed module scanner (Can be upgraded to 60K),Scan angle:±30°;Input signal:±5V;Linearity distortion<2%)

◎ Beam diameter and Divergence : 5mm;<2mrad

◎Modulation: TTL(analog modulation is optional)

◎Control Modes：Music(four mode with blackout)Automatic/Master-Slave/DMX512(25CH)/SD card control/Compatible ILDA laser show software

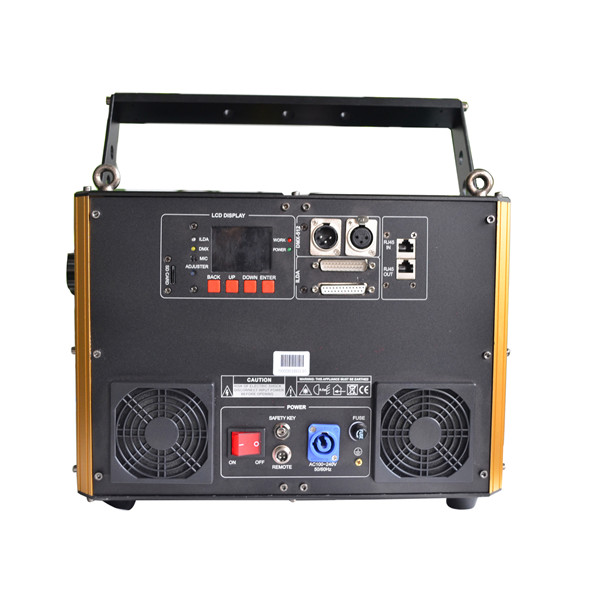

◎Control Interfaces:ILDA Standard DB25 Connector,International Standard DMX 512,Phoenix(Germany) or Pangolin (USA) etc. RJ45

◎Demonstration effect:Built-in 144 pattern SD card unlimited storage.by DMX choose pattern scene or SD card laser show

◎DMX effect:Double pattern modes,and with the function of unique blanking, frequently flashing,rotating,movement,billowing,zoom,drawing,speed and color etc

◎Security Intelligent function:no signal no emit,Key power; signal is changed automatically(PC to DMX or DMX to PC),Quick Channel, one of the product channels,SD update online

◎Operating requirement: dry, less dust, 10~40℃(environmental temperature) ,will reduce the attenuation of the diode and extend the life of the light.

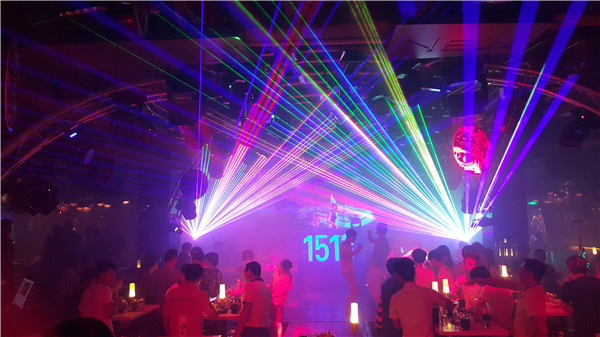

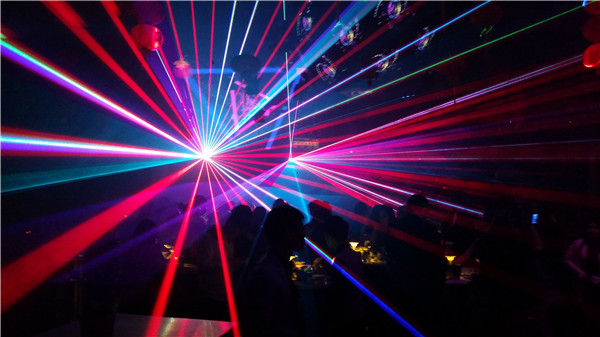

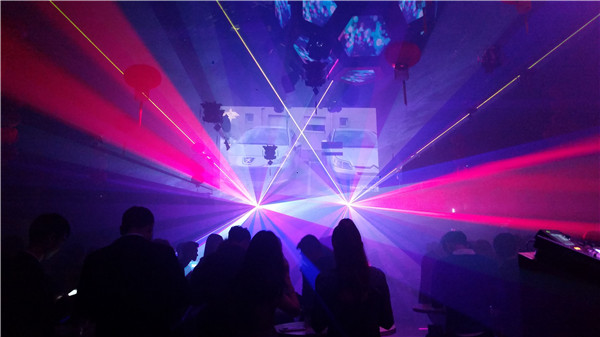

◎Application：Disco, Clubs, KTV, Pub, TV station, Vocal concert,Advertising promotion, etc

◎Size:56X44X42.5CM ◎N.G/G.W:17.0/20.5KG
